BATTERIES
Battery
NEXSTEP is a product SIDDHESHA ORGANIC ENERGY,JALGAON. which is another branch of well know NEXSTEP which is a well organized industrial group engaged in the manufacturing and promoting eco-friendly and environmentally safe renewable energy solutions/ solar solutions and power electronic products in India.
Battery Information
Battery Maintenance & Service
A 12V battery usually gives problems in service due to the combination of the following reasons:
- Overcharging
- Undercharging.
- Insufficient topping up or low electrolyte level due to leakage in container.
Effects of electrolyte below top of the plates
- Abnormal sulfating takes place
- Exothermic reaction takes place.
- Separators get damaged.
Renewable Energy
Start Saving and Generating Energy Now
5+
Years of Experience
What does a battery contains?
- Casting/ Containers: Heat sealed & leak proof containers.
- Positive Plate: flat pasted type with lead dioxide (PbO) to resist corrosion & for longer life.
- Negative Plate: flat pasted type of sponge lead (Pb).
- Electrolyte: high purity sulphuric acid along with additives to improve heat dissipation.
- Separator: high porosity absorbent type with low internal resistance. It is used to electrically isolate the positive & negative electrodes. It prevents short circuit through physical contact
- Valve: self releasing, pressure regulating valve
- Terminals: high conductivity brass terminals for better electrical conductivity
INVATOWER BATTERIES
Introducing NEXSTEP Automotive Batteries which provides torque power to achieve instant cranking. Designed to make cars with higher efficiency. Automotive battery is a power house of a battery on Indian terrains. Turbo Max 50/ 60AH is a special purpose car battery to provide power for your car which will never stop you. This ideal power source has empowered car owners with a sense of reliability. Its long life, power and safety is remarkable.
Features
• Specially mixed corrosion resistant alloy for spines & grids.
• High brushing strength with high performance.
• Specially made cross ribbed separator envelopes.
• Electrolyte volume per AH is very much higher than ordinary batteries.
• This design requires less floor space & specially designed vent plugs to trap water loss.
• Almost maintenance free battery.
Technical Specification
| Battery Type | CAPACITY @C20 | Length (mm) | Width (mm) | Height (mm) | CHARGED BATTERY WEIGHT (kg) |
|---|---|---|---|---|---|
|
IT100 |
100 AH |
475 |
190 |
443 |
50.80 |
|
IT150 |
150 AH |
475 |
190 |
443 |
55.80 |
|
IT180 |
180 AH |
475 |
190 |
443 |
58.50 |
|
IT200 |
200 AH |
475 |
190 |
443 |
62.00 |
|
IT220 |
220 AH |
475 |
190 |
443 |
65.66 |

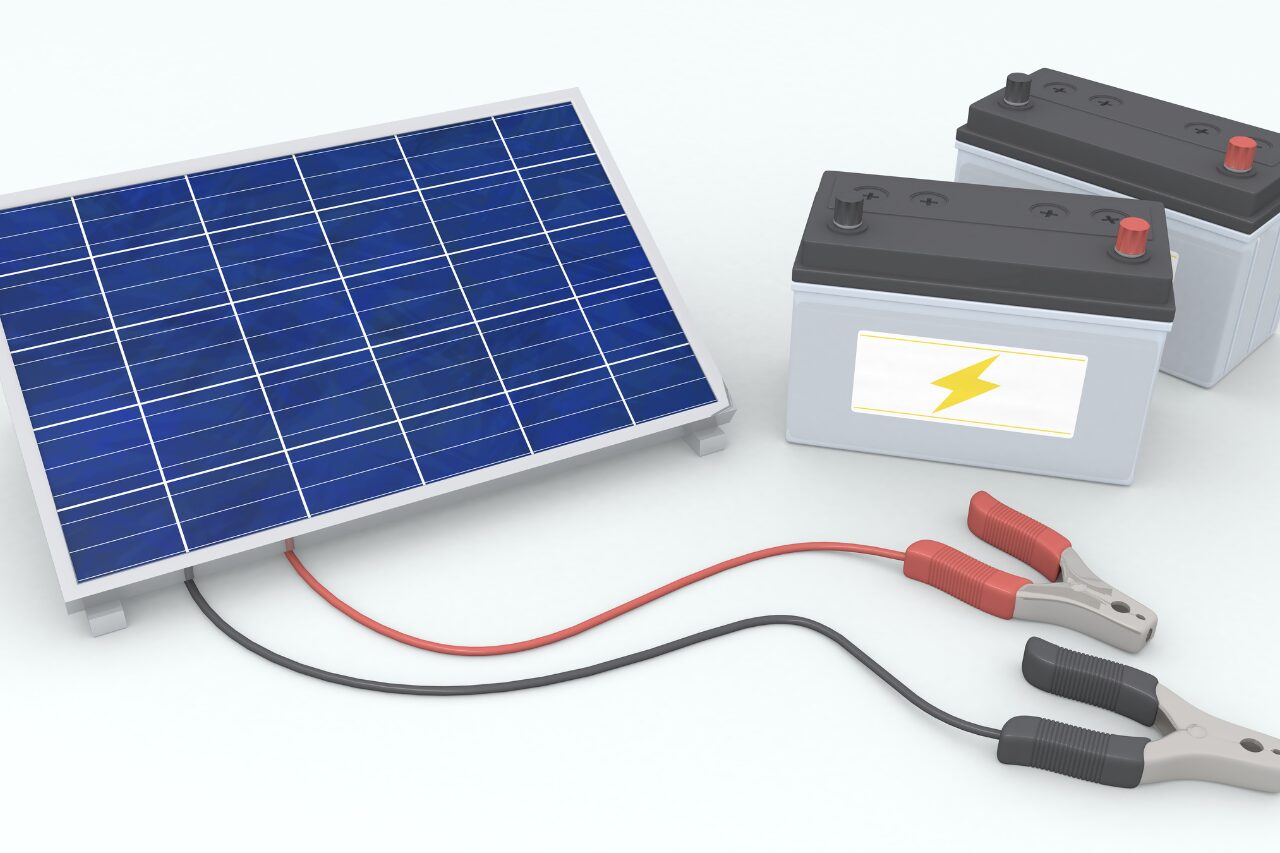

NEXSTEP SOLAR BATTERIES
Nexstep Inverlast has adapted a technology to make the best use of eco-energy. The solar battery is the outcome of the research and it is the right solution as an alternative to conventional resources.
Features
- Superior cycle life.
- Deep cycle design with very low maintenance.
- Strong & rugged container with heat sealed cover & handles for easy lifting.
- Fine grain structure for excellent corrosion resistance.
- Superior active material for excellent discharge performance.
- Supplied in factory charged condition.
Technical Specification
| Battery Type | 12V/ 200AH | >Width (mm) | >Height (mm) |
|---|---|---|---|
|
12V/ 20AH |
256 |
172 |
246 |
|
12V/ 40AH |
305 |
172 |
248 |
|
12V/ 60AH |
411 |
173 |
260 |
|
12V/ 75AH |
513 |
212 |
256 |
|
12V/ 150AH |
510 |
285 |
320 |
|
12V/ 180AH |
510 |
285 |
320 |
|
12V/ 200AH |
510 |
285 |
320 |

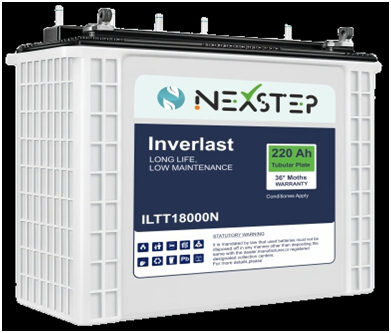

INVATUBULAR BATTERY
NEXSTEP presenting heat sealed tubular stationary battery series which confirms to specifications as,
- Acid volume per ampere hour is 30% more than that of ordinary tubular batteries
- Can withstand overcharge better.
- Less pollution. Environment friendly.
- Ensures consistent quality.
- Low maintenance
- Longer lifetime
Technical Specification
| Battery Type | CAPACITY @C20 | Length (mm) | Width (mm) | Height (mm) | CHARGED BATTERY WEIGHT (kg) |
|---|---|---|---|---|---|
|
G20 |
20 AH |
256 |
172 |
246 |
14.00 |
|
G40 |
40 AH |
305 |
172 |
248 |
21.10 |
|
G60 |
60 AH |
393 |
173 |
260 |
27.60 |
|
G75 |
75 AH |
485 |
212 |
266 |
37.00 |
|
G100 |
100 AH |
490 |
275 |
300 |
53.50 |
|
G150 |
150 AH |
490 |
275 |
300 |
59.30 |
|
G180 |
180 AH |
490 |
275 |
300 |
62.80 |
|
G200 |
200 AH |
490 |
275 |
300 |
66.60 |
